Fuzion NXWood Grainspire Luxury Vinyl Plank
Enter the size of your space
Choose how you'd like to proceed
For this product only • No payment required
Add multiple items and request a quote together
Product Information
| Product Name | Grainspire |
| SKU | NX199GP01 |
| Brand | Fuzion Flooring |
| Collection | NXWood |
| Category | Vinyl Flooring |
| Sub-category | Vinyl Planks |
| Type Of Vinyl | PVC-Free Composite |
| Edge Type | Beveled |
| Installation Type | Click Lock (Floating) |
| Size | 8 in. x 48 in. (203 x 1219 mm) |
| Thickness | 6.5 mm |
| Construction | Hybrid Resilient Flooring (NXCore non-PVC waterproof core) |
| Finish | Fuzion liquid coating |
| Texture | Embossed |
| Edge Detail | 3DGE painted bevel with nano sealed edge |
| Method Detail | Floating click |
| Locking System | 2G click |
| Installation Grade | On, Above, or Below Grade |
| Radiant Heat | Hydronic Only - Hydronic radiant heat approved |
| Wear Rating | AC4 / 20mil equivalent |
| Temperature Range | -30 degC to 80 degC |
| Residential Warranty | Lifetime |
| Commercial Warranty | 10 Years light |
| Pieces Per Box | 10 |
| Certifications | FloorScore, CARB II |
| Accessories & Trims | Stair Tread, Square Stair Nose, Reducer, T-Molding |
| SQFT Per Box | 26.13 |
No documents available
Contact us for installation guides, warranty information, or technical specifications
Contact Support.jpg&w=1920&q=75)
About this product

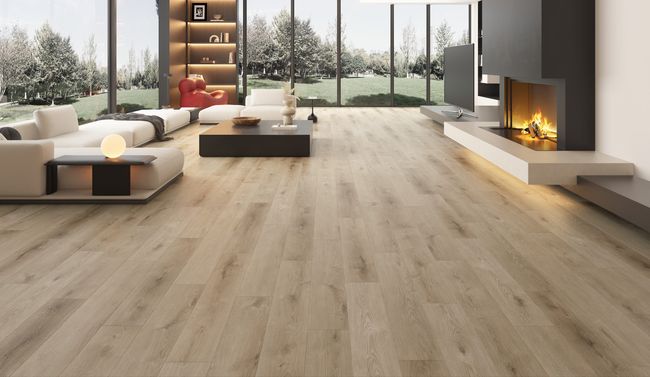

Grainspire from the Fuzion NXWood collection is a hybrid resilient luxury vinyl plank flooring available at Squarefoot Flooring in Mississauga and Barrie. Fuzion NXWood Grainspire is built to 6.5 mm thickness with an AC4/20 mil equivalent wear layer, embossed texture with Fuzion liquid coating, 3DGE painted bevel edge with nano sealed edge, and 2G click system on a non-PVC NXCore waterproof core. NXWood Grainspire Fuzion features an 8" x 48" plank format, hydronic radiant heat approved, FloorScore and CARB II certified, covering 26.13 sq ft per carton, and installs on, above, or below grade from -30°C to 80°C. This hybrid resilient plank flooring is 100% waterproof. Grainspire delivers a warm natural grain-inspired mid-brown tone with natural organic texture suited for grain-pattern and everyday casual contemporary interiors. Backed by a lifetime residential and 10-year light commercial warranty. Matching stair tread & riser, square stair nose, reducer, and T-mold accessories are available. SKU: NX199GP01.
